4 Axles 80 Ton 14m Lowbed Heavy Duty Semi Trailer With Mechanical Ladder
Application: it can be used to transport non-detachable objects especially construction machines such as excavators, loaders, bulldozers.
Type: semi-trailer, material: steel, size:14000x3200x3170mm
Chassis (I beam) Top flange plate Q345B 22mm
Tyres: size of tyres are optional according to customers' use such as tube ones 10.00R20, 11.00R20, 12.00R20, tubeless 12R22.5, 13R22.5.
Quality: 1). the steel thickness we use is enough to satisfy 80 ton loading capacity.
2). Landing gear we use JOST brand which is more powerful than normal Chinese brand.
Packaging: nude package Material and thickness
Shipping: 40ft container, bulk cargo, ro-ro ship
Port: Qingdao, Tianjin, Lianyungang, Shanghai
Lowbed Heavy Duty Semi Trailer Specification
| Loading capacity | 80 ton |
| Size | 14000x3200x3170mm(board height) |
| Chassis (I beam) | Top flange plate | Material and thickness | Q345B 22mm |
| | Bottom flange plate | Material and thickness | Q345B 25mm |
| | Middle flange plate | Material | Q345B |
| | | Thickness | 14mm |
| | | Height | 550mm |
| | Side beam height | Type | U steel |
| | | | Bending parts |
| | | Height | 250# U steel |
| Ladder | Type | Mechanical |
| | Width | 700mm |
| Board height | 1350mm | (from the top of floor to the ground ) |
| Floor | Material | Carbon steel Q235 |
| | Thickness | 5mm |
| | Floor type | Checkered plate |
| | Axle | Brand | Normal Brand |
| | | Type | 13t |
| | | Number | 4pcs |
| | Rim | Type | 8.5 |
| | | Number | 16pcs |
| | Tire | Brand | Gold shell brand |
| | | Type | 12.00R20/12R22.5 |
| | | Number | 16pcs |
| | Suspension | Mechanical suspension |
| | Spring leaf | Leaf width | 90mm |
| | | Leaf thickness | 16mm |
| | | Layer/set | 10 Layer |
| | King pin | Type | Bolts type |
| | | Diameter | 3.5 inch |
| | Brake system | Air tank | 45L air tanks |
| | | Brake chamber | 8 double spring brake chamber |
| | | ABS | Without |
| | Landing gear | Brand | JOST |
| | | Type | A300C two speed |
| | Light | LED light |
| | Voltage | 24v |
| | Receptacle | 7 ways(7wire harness)and quick change type |
| | Tool box | One piece |
| | Paiting | Polyurethane paint&anti-rust primer&sand blasting |
| Tools for trailer | Head wrech; spare wheel crank ; |

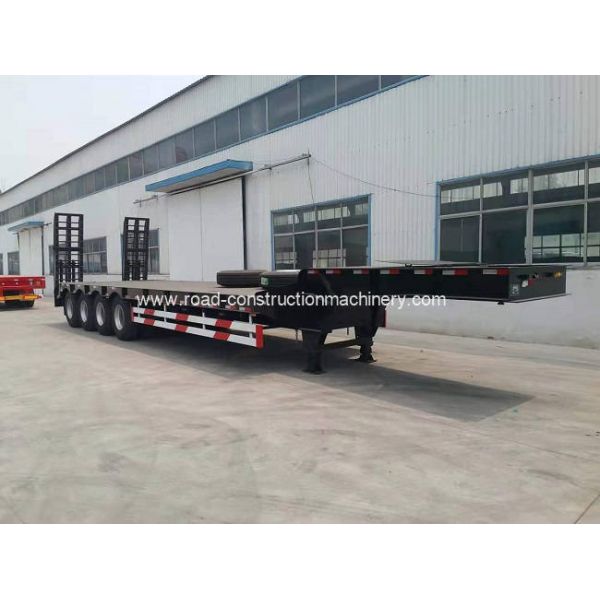

Lowbed Heavy Duty Semi Trailer Lowbed Pictures
